Pipe Rack & Gallery Steel Structure Professional Industrial Pipe Support

Our Pipe Rack Steel Structure is designed for industrial, oil & gas, chemical and power plants. High-strength steel with protective coating ensures great corrosion resistance and long service life in harsh environments. Modular design enables easy transport, fast installation and flexible expansion for pipelines, cable trays and utility lines.

product details

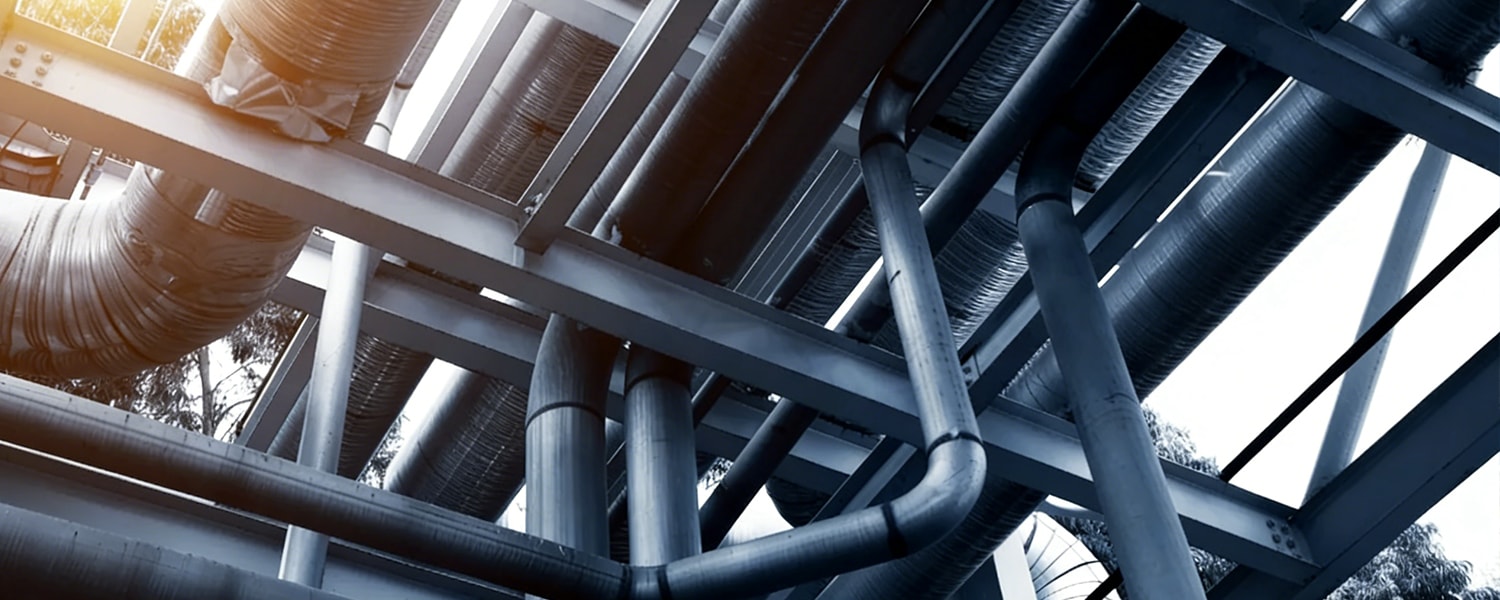

Rapid Installation Prefabricated Metal Building steel framework Steel Structures Warehouse Product Description (1)

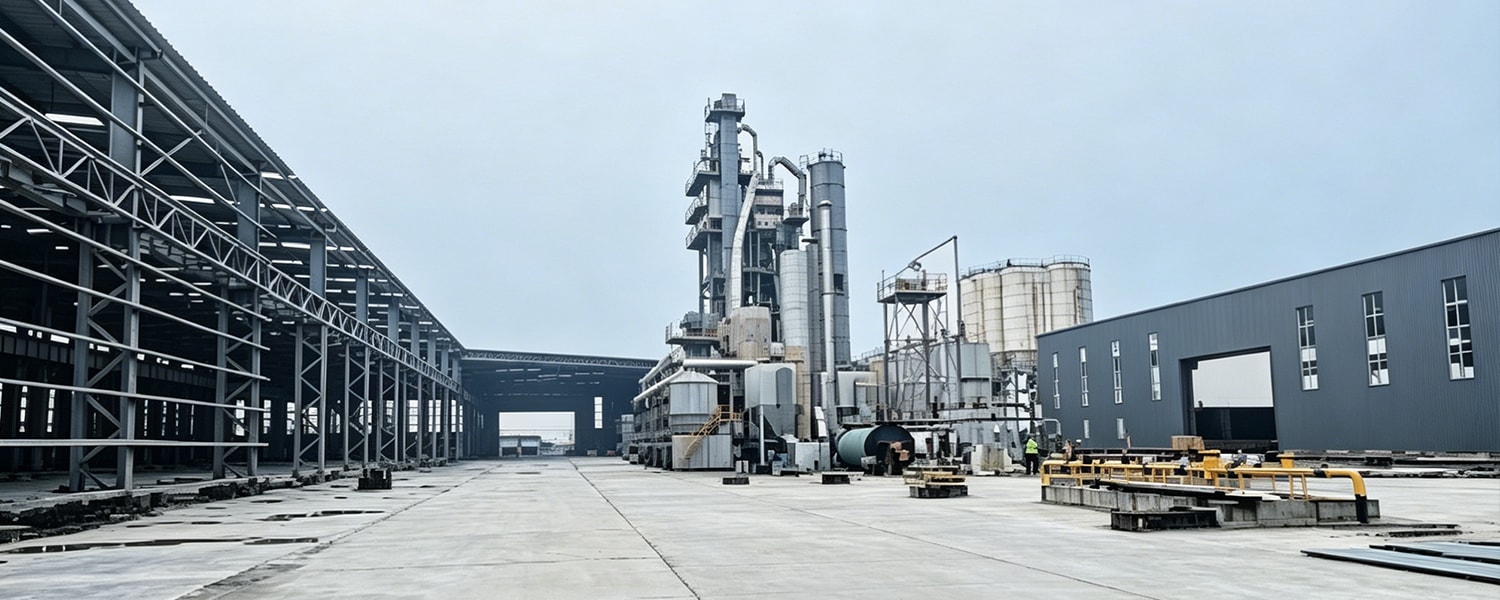

Low-Cost Industrial Steel Structure Factories Prefabricated Metal Frame Construction Building Product Description (4)

Customized Vertical Steel Truss Structure metal materials Building Construction Description (4)

Product Description

Our Pipe Rack / Gallery Steel Structure is a high-performance, engineered support system designed to organize and carry process piping, utility lines, and cable trays in industrial plants, oil & gas facilities, chemical plants, and power stations.

Constructed with premium high strength steel and finished with professional coating, our pipe rack structure provides excellent corrosion resistance, long-term durability, and reliable load-bearing capacity even in harsh outdoor or corrosive environments.

Adopting a modular design with standardized components, the system enables efficient transportation, quick on-site assembly, and easy installation, significantly reducing construction time and labor costs. We offer full customization in terms of span, height, load capacity, and layout to meet specific project requirements, supporting both single-tier and multi-tier configurations for complex pipeline arrangements.

All manufacturing processes are carried out under strict quality control and comply with international standards such as ISO, ensuring structural stability, safety, and compliance with global project specifications.

As a professional steel structure manufacturer, we provide one-stop solutions including design, fabrication, surface treatment, delivery, and technical support, making our pipe rack/gallery steel structure a trusted choice for industrial infrastructure projects worldwide.

Item	Details
Product Name	Customized Portal Frame Steel Structure Warehouse/Workshop/Hangar
Main Steel Frame	Welded steel beams and columns
Secondary Frame	Hot-dip galvanized purlin, steel bracing, tie bar, knee brace, edge cover, etc.
Roof Panel	Glass wool sandwich panel (optional: Rock wool sandwich panel, PU sandwich panel, Corrugated steel sheet)
Wall Panel	Glass wool sandwich panel / Corrugated steel sheet
Connection Mode	High-strength bolt connection + Partial welding
Tie Rod	Circular steel tube (Hot-dip galvanized surface treatment)
Knee Brace	Angle Steel (Galvanized/painted surface)
Brace	Round Bar / Angle Steel (Hot-dip galvanized treatment)
Door Configuration	Roller shutter door (Large cargo access) / Access door (Personnel access)
Window Configuration	Fixed window / Sliding window
Ventilation System	Roof ventilator (Natural ventilation) / Side wall ventilation window
Design Parameters	Customized based on project site size , load capacity, local building codes and customer functional requirements

Product Features

1. High-Strength Steel Construction Made of high-quality high strength steel, ensuring superior load-bearing capacity, structural stability, and long service life.

2. Surface Treatment With professional painting , offering excellent corrosion resistance and anti-rust performance for use in harsh industrial environments.
3. Modular Design for Easy Installation. Adopts modular design with standardized components, enabling convenient transportation, quick assembly, and reduced on-site construction time.

4. Flexible Customization Options Supports custom design, size, span, and configuration to fit different project needs, suitable for both simple and complex pipeline layouts.
5. Compliance with International Standards. Manufactured under strict quality control, fully complying with international standards (ISO) for reliable safety and performance.

6. Multi-Tier & Multi-Functional Layout. Available in single or multi-tier configurations, ideal for organizing process pipes, utility lines, and cable trays in industrial plants.
7. Cost-Effective & Low Maintenance. Durable structure with minimal maintenance requirements, providing a long-lasting and cost-effective solution for industrial infrastructure.

Application

Zhisheng steel structure buildings feature large clear span, robust structure, fast construction and high adaptability, catering to a wide range of industrial and commercial demands worldwide. Our customized steel building solutions are widely applied in the following fields:

Get A Quote

Please provide the following key project details for an accurate quotation:

1.Project Basic InfoCountry, intended usage (warehouse/workshop/showroom/others), and current progress (land & approval status).

2. Site ConditionsLocal climate requirements: design wind speed, snow load, and seismic grade if applicable.

3. Building DimensionsRequired length × width × height, and total building area.

4. Design & DrawingsWhether you have finished construction drawings, or need our design & calculation services.

5. Internal ConfigurationWhether crane beams or other steel fittings are required inside the structure.

6.Envelope SystemPreferred materials for roof & wall panels, plus specifications for doors and windows
