Product Description

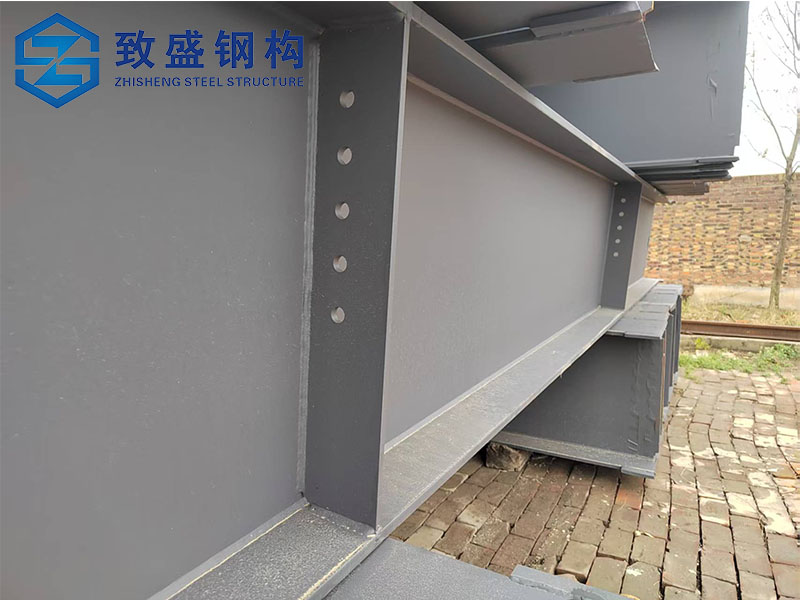

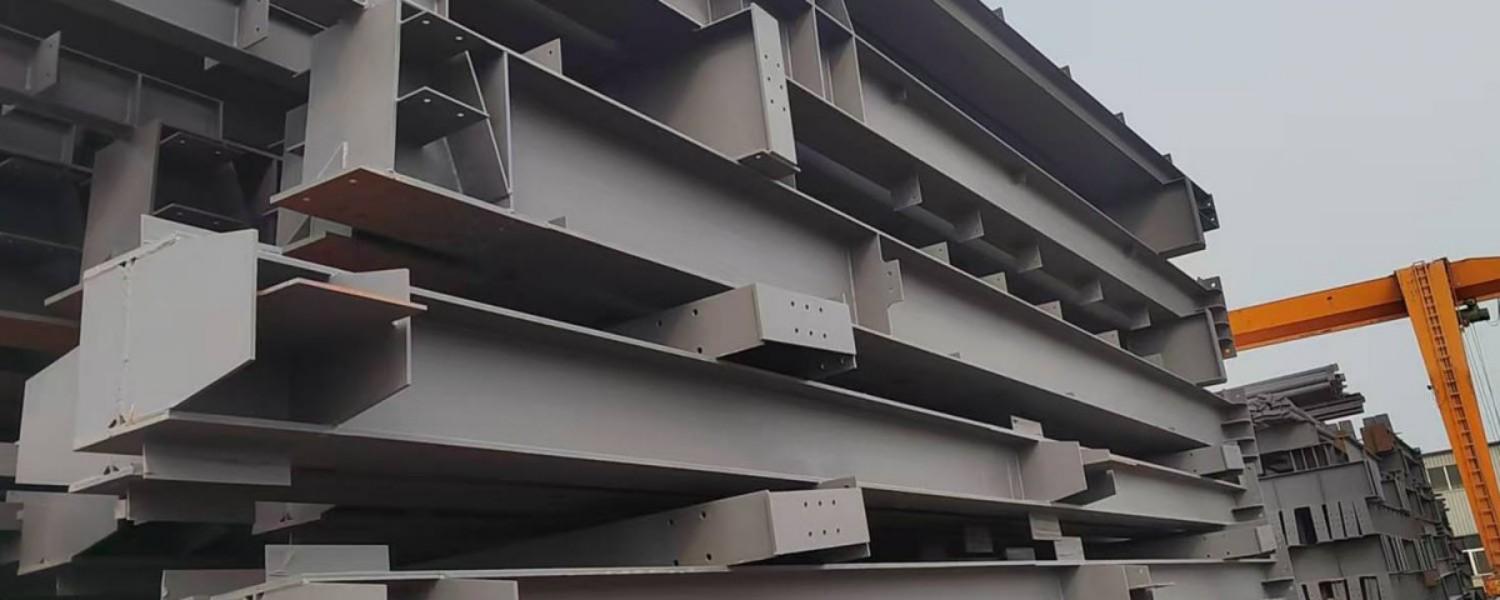

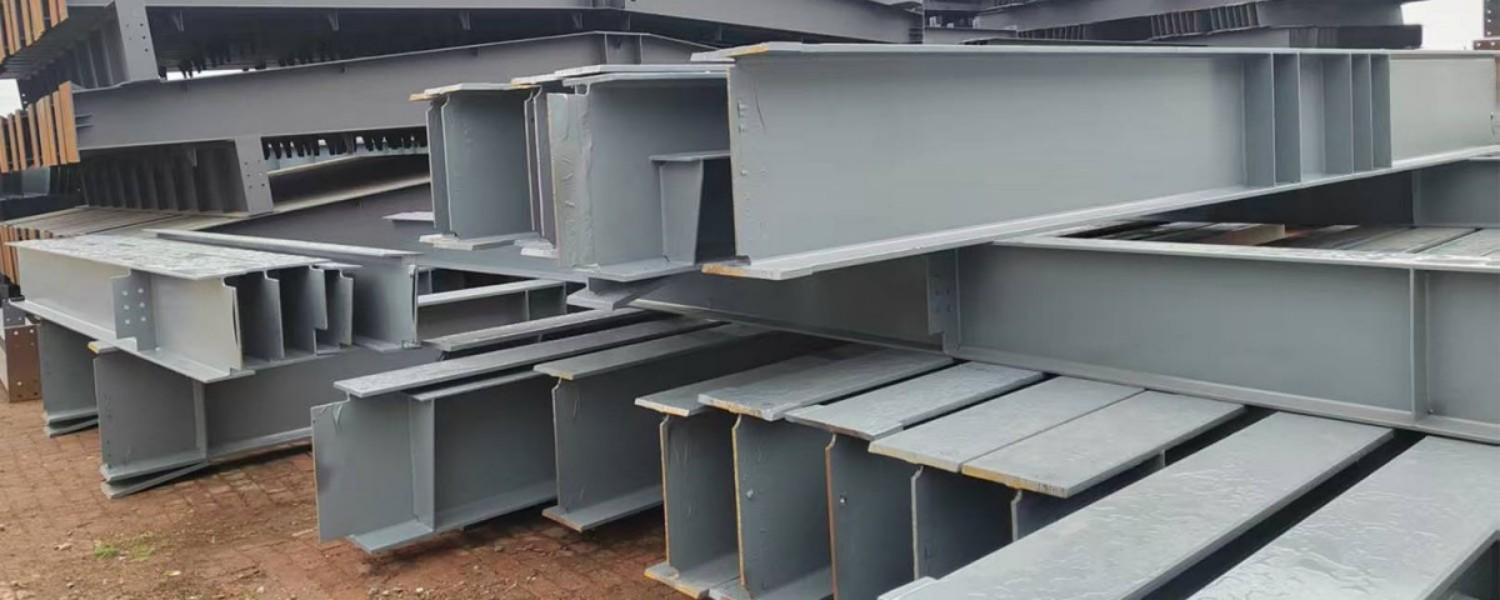

H-beam is a hot-rolled or welded steel section characterized by a wide flange and parallel inner and outer flange surfaces. This design ensures uniform stress distribution and high sectional modulus. Made from Q235B / Q355B steel, it delivers superior bending and compressive strength. H-beam significantly reduces steel consumption compared to traditional I-beams under the same load conditions, and is widely used as main beams, columns, and pile foundations in industrial and civil construction.
|
Item |
Specification |
|
Material |
Steel Structural H section Beam |
|
Flange Width |
100 - 400mm |
|
Web Width |
100 mm ~ 900 mm |
|
Web Thickness |
6.5- 16 mm |
|
Flange Thickness |
8-28mm |
|
Length |
Customized, max. 6 - 12 m |
|
Zinc Coating |
60 - 275 g/m² (double-sided hot-dip galvanized) |
|
Material standards |
Q235, Q345, Q355, G550 |
|
Production Capacity |
100,000 meters / month |
|
Customization |
Specifications available as per customer’s request |
Product video
Product Features
-
1.Wide flanges and parallel surfaces simplify connection and welding.
-
2.High bending rigidity reduces the need for intermediate supports.
-
3.Optimized sectional area lowers steel usage and foundation load.
-
4.Excellent seismic performance and fatigue resistance.

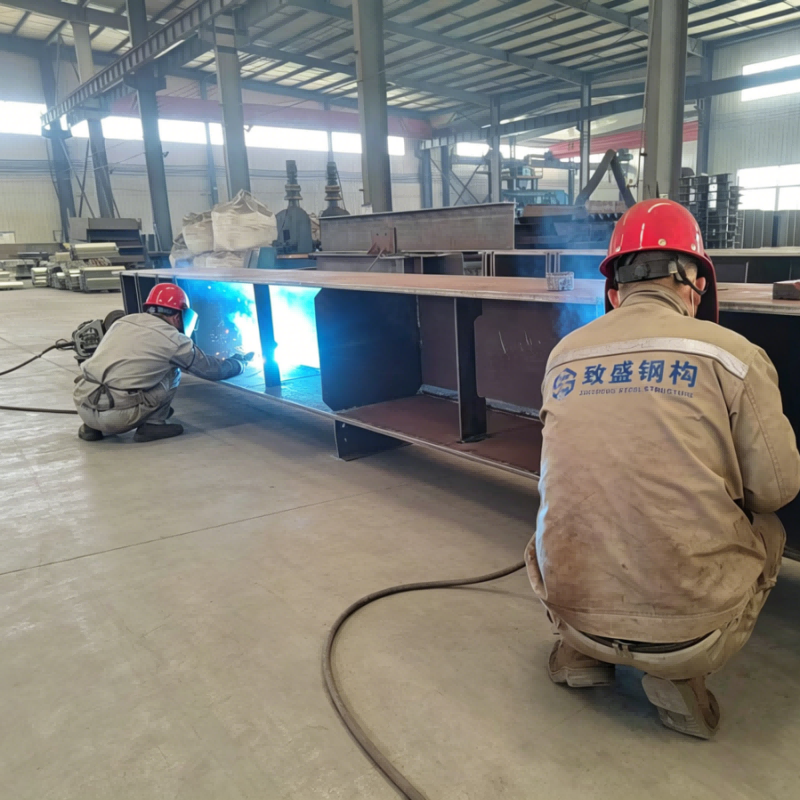

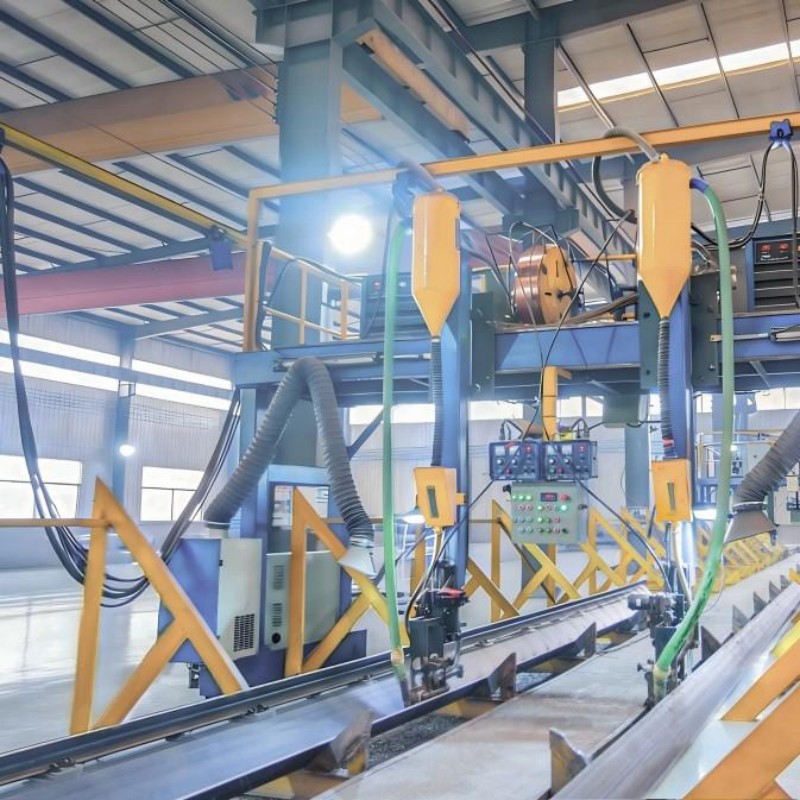

5.Suitable for welded fabrication methods.

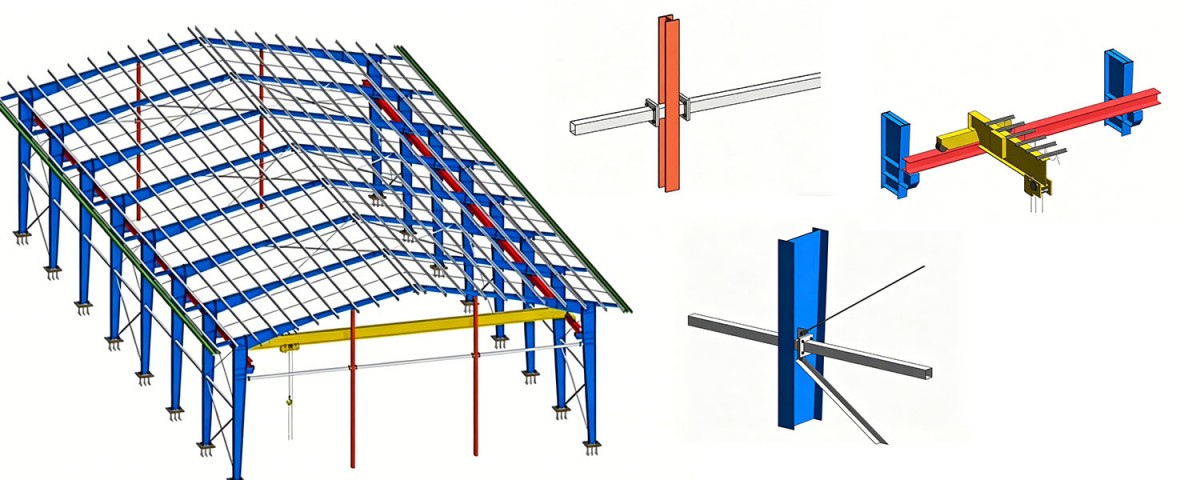

Application

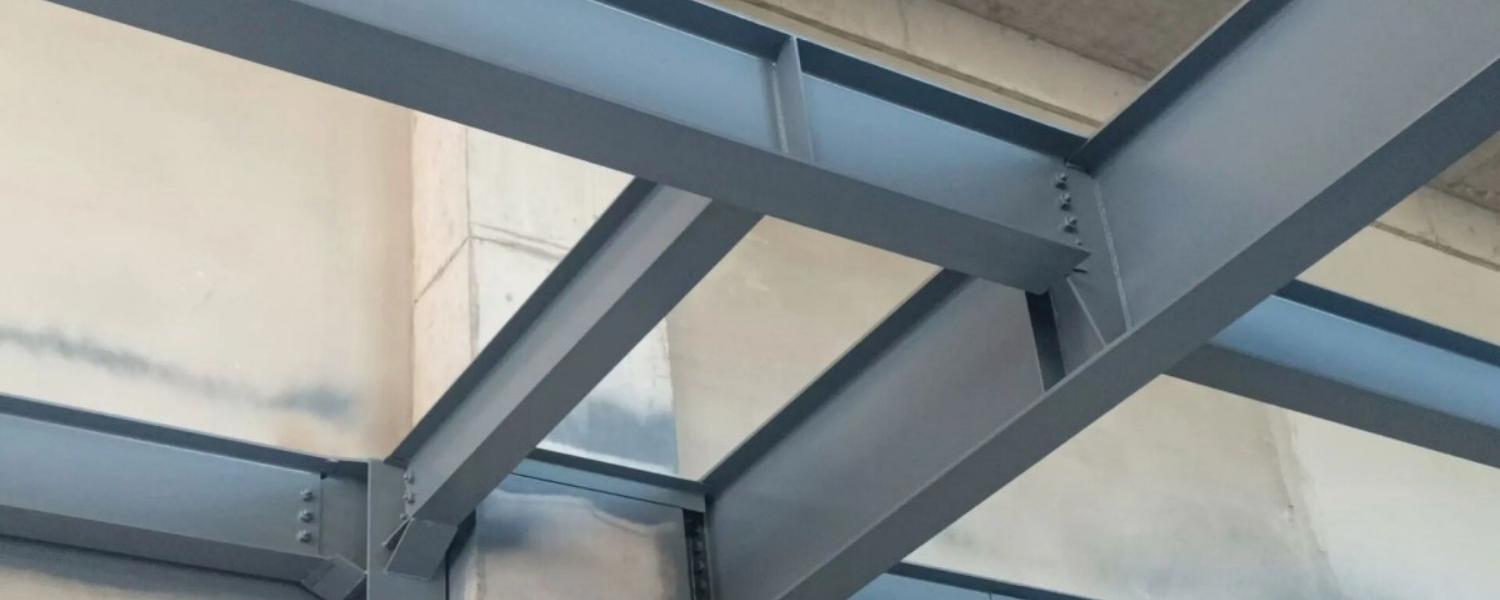

1.Steel structure high-rise buildings and industrial plants
2.Bridge girders and crossbeams
3.Large-span workshop frames and crane beams
4.Underground support piles and foundation beams
5.Heavy equipment support frames
Get A Quote
- H Beam Dimensions (Custom Welded)
- Load & Performance Requirements
- Welding & Fabrication Specifications
- Material & Surface Protection
- Quality Documents Required
